Fiber Array
光纖陣列（FA）是一種將多根光纖或光纖帶精確排列在具有V形槽（V-Grooves）的基板上而構成的光學器件。這種結構可確保光纖芯的精確定位，從而最大限度地減少連接損耗并實現高密度光信號傳輸。
-
≤0.30dB插入損耗
-
3~5mmFA長度
-
產品優勢
-
產品應用
-
產品參數
-
應用解決方案
產品優勢
-
多角度端面可選，滿足多種連接需求

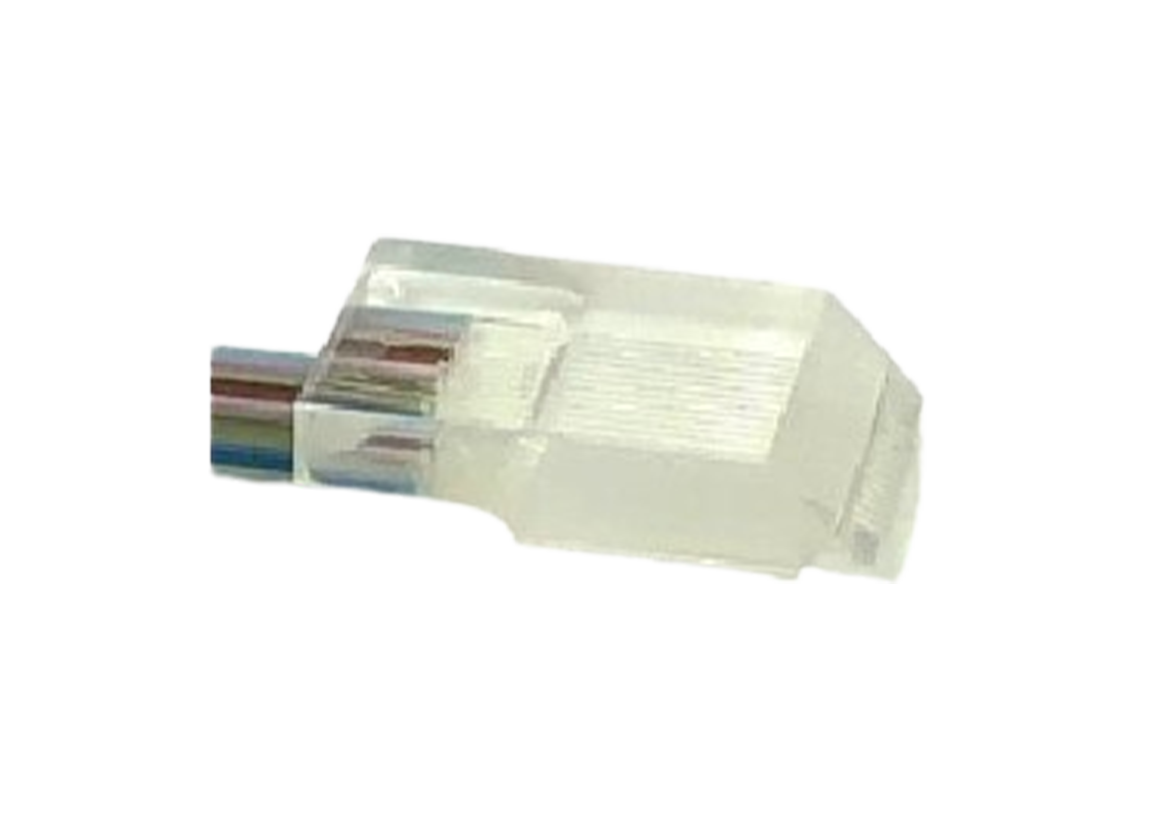

支持0°/8°/41°/42.5°/45°等多種角度定制，靈活適配不同光路系統，提升連接兼容性與應用多樣性。
-
多規格間距靈活配置，滿足客戶定制
光纖間距可選125/250/500/750μm，支持±0.1mm精度間距公差，精準匹配多場景封裝工藝要求。
-
多類型光纖兼容，適配廣泛應用
兼容SMF28e/G657A1/G657A2/MM/PM等多種光纖類型，覆蓋從通信模塊到光子芯片封裝的多領域需求。
-
高速傳輸，低功耗，穩定可靠
具備高傳輸速率、低能耗等優勢，兼具優異的穩定性與長期可靠性，助力高速光通信系統高效運行。
產品應用
-
應用于HDMI, AOC -
平行光傳輸 -
應用于QSFP, QSFP+, SR, SNAP12 -
高速硅光收發器模塊 -
應用于AWG/WSS/VMUX/OCM/MCS
產品參數

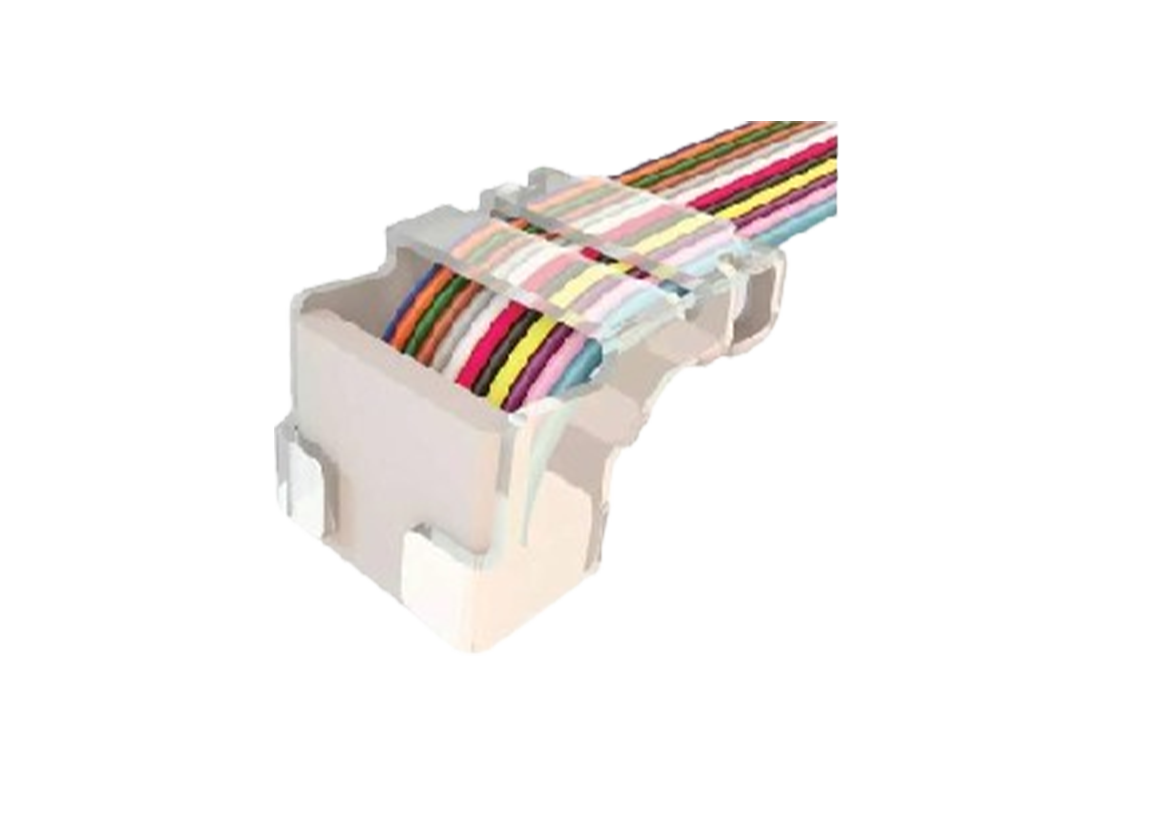

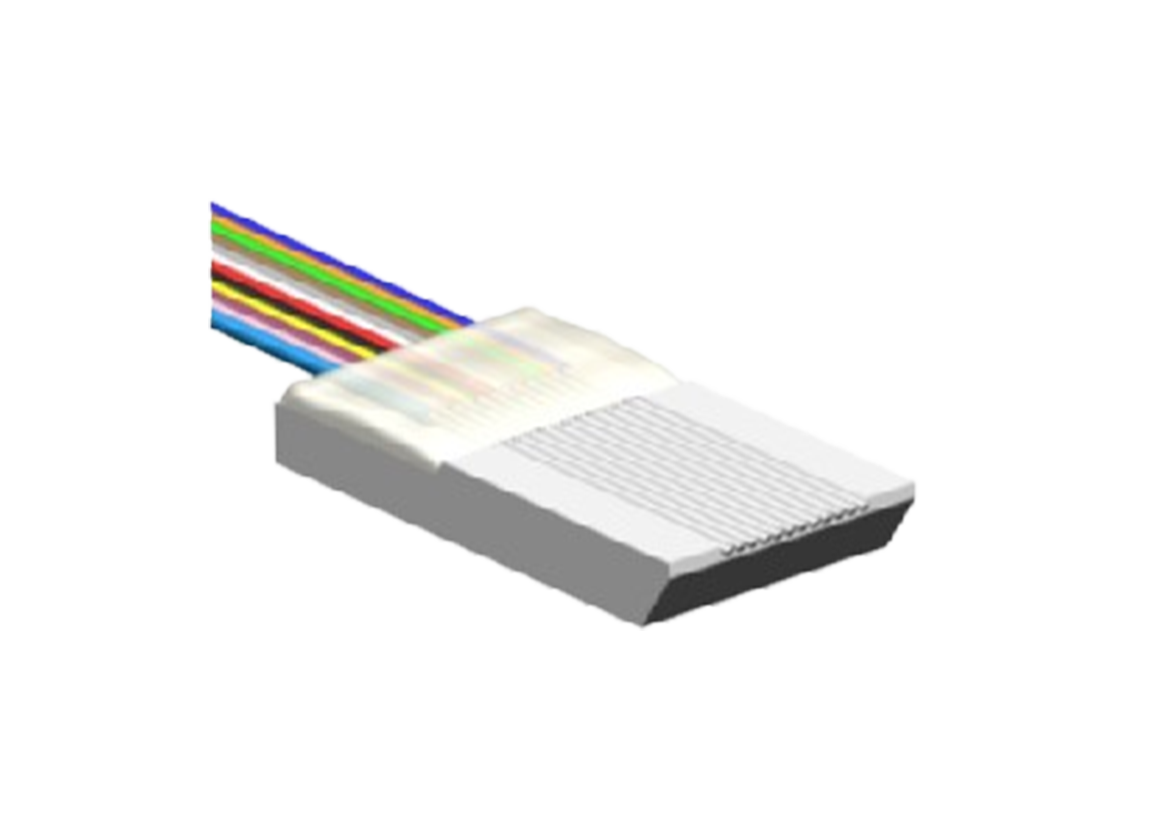

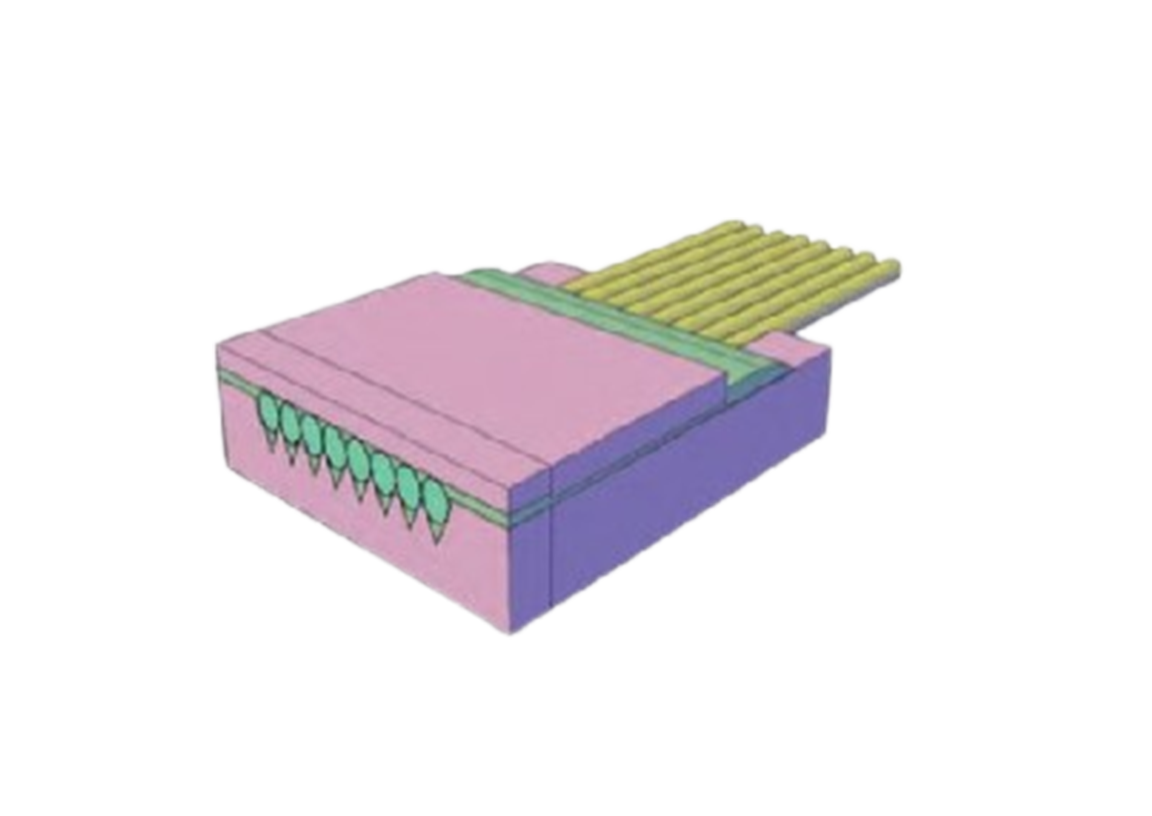

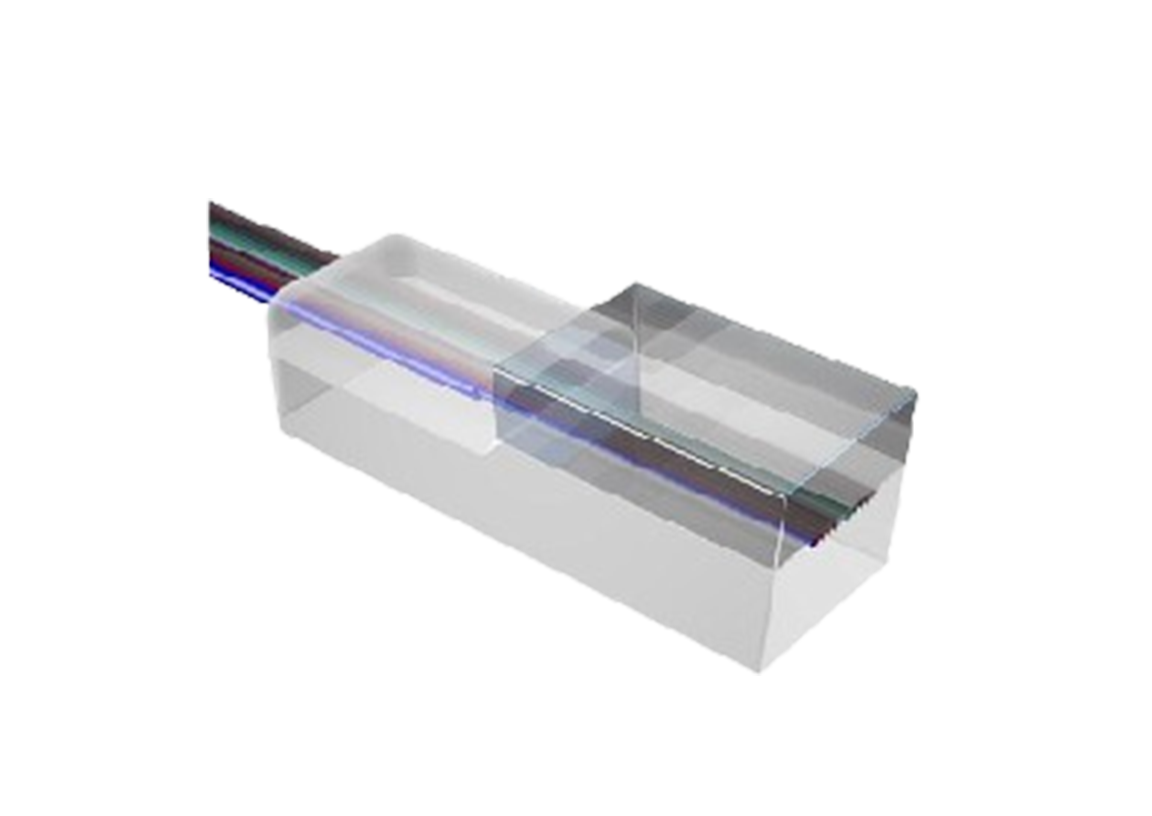

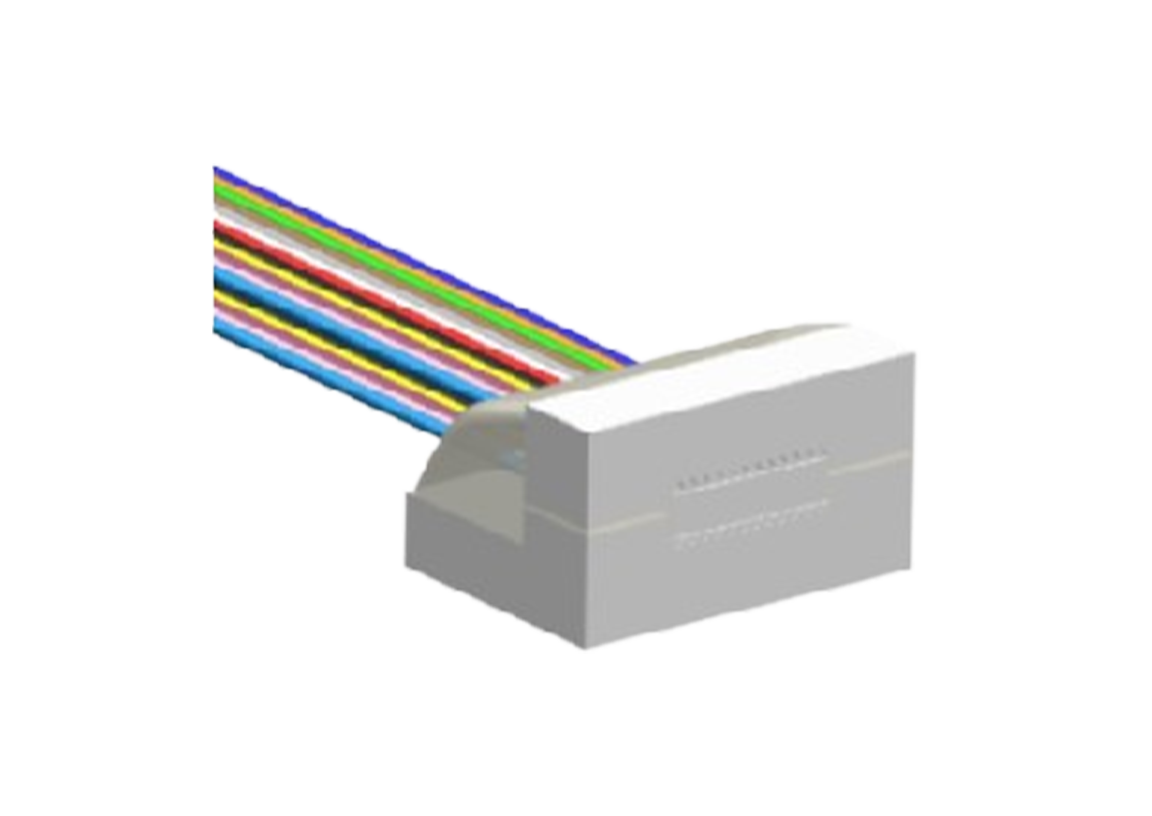

系列型號
-
1CH
-
2CH
-
3CH
-
4CH
-
8CH
-
16CH
-
FA Pitch(um)
-
FA Pitch Accuracy(um)
-
Small Die Spot Size(um)
-
IL(max)(dB)
-
FA Length(mm)
-
PER(min)(dB)
-
1CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)/
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
2CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.5
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
3CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.5
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
4CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.5
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
8CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±0.7
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
-
16CH
-
FA Pitch(um)127 or 250
-
FA Pitch Accuracy(um)±1.0
-
Small Die Spot Size(um)5.5、4、3.3 @ 1310 4、3.2 @ 1550
-
IL(max)(dB)<0.3
-
FA Length(mm)3~5mm
-
In addition to the above characteristics, the extinction ratio index of PM series FA is as follows
-
PER(min)(dB)Small die pot>22 Non-MFD matched>28
-
